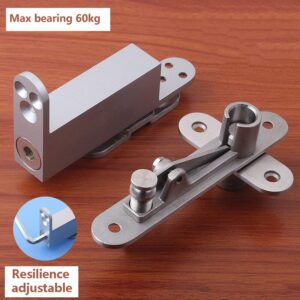

Self closing pivot door hinge

 Self Closing Pivot Door Hinge.

Achieve Elegant, Automatic Door Closure with a Self Closing Pivot Door Hinge

For architects, designers, and homeowners seeking a minimalist aesthetic combined with practical functionality, a self closing pivot door hinge offers the perfect solution.

Unlike traditional butt hinges mounted on the side of the door, pivot hinges are installed at the top and bottom of the door leaf. This allows the door to rotate around a vertical axis set in from the edge. This creates a clean, frameless appearance and enables the door to swing smoothly in either direction.

When combined with an integrated self-closing mechanism, these hinges provide automatic, controlled door closure. They are ideal for high-traffic areas, accessibility requirements, or simply for the convenience of never leaving a door ajar.

Whether for a residential entrance, a commercial office, or a high-end retail space, a quality self-closing pivot hinge delivers both style and substance.

What is a Pivot Door Hinge?

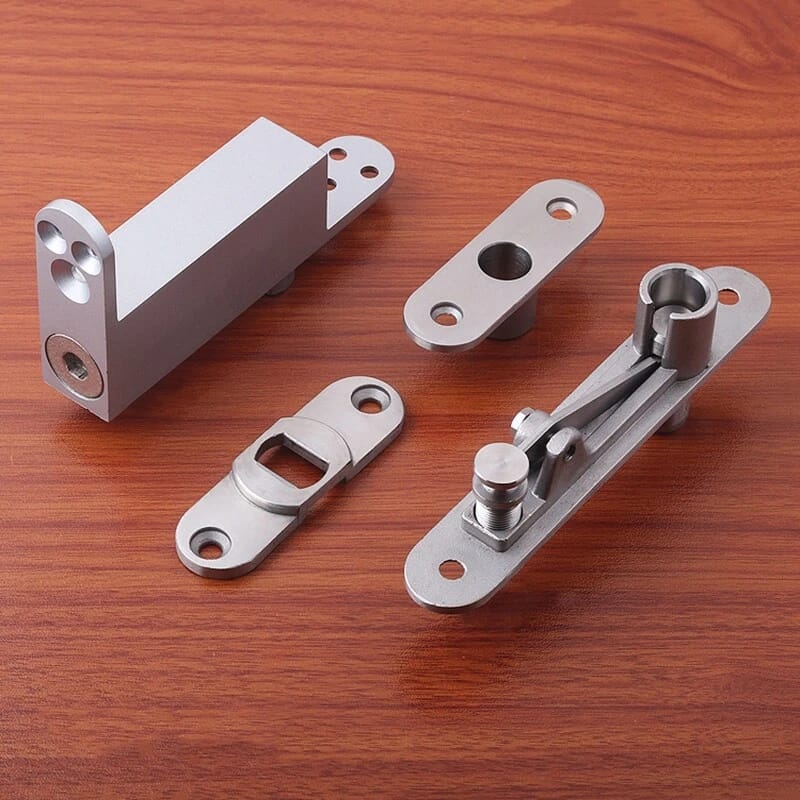

A pivot hinge system consists of two main components. There is a top pivot and a bottom pivot. These are installed into the floor and the door frame or ceiling. The door rotates around a pivot point that is typically located some distance from the door edge.

This unique geometry allows pivot doors to open in both directions depending on configuration. They achieve wider opening angles than standard hinged doors. They create a seamless, frameless look when combined with concealed installation. They support heavy door weights due to distributed load bearing.

Self-Closing Mechanism: How It Works

The self-closing function in a quality pivot hinge is typically achieved through an integrated torsion spring mounted along the rotation axis. Unlike traditional door closers that are surface-mounted and visually obtrusive, the spring mechanism in a pivot hinge is concealed within the hinge body itself.

The hinge contains a precision-engineered torsion spring that tensions as the door is opened. When released, the spring’s stored energy smoothly and quietly returns the door to its closed position.

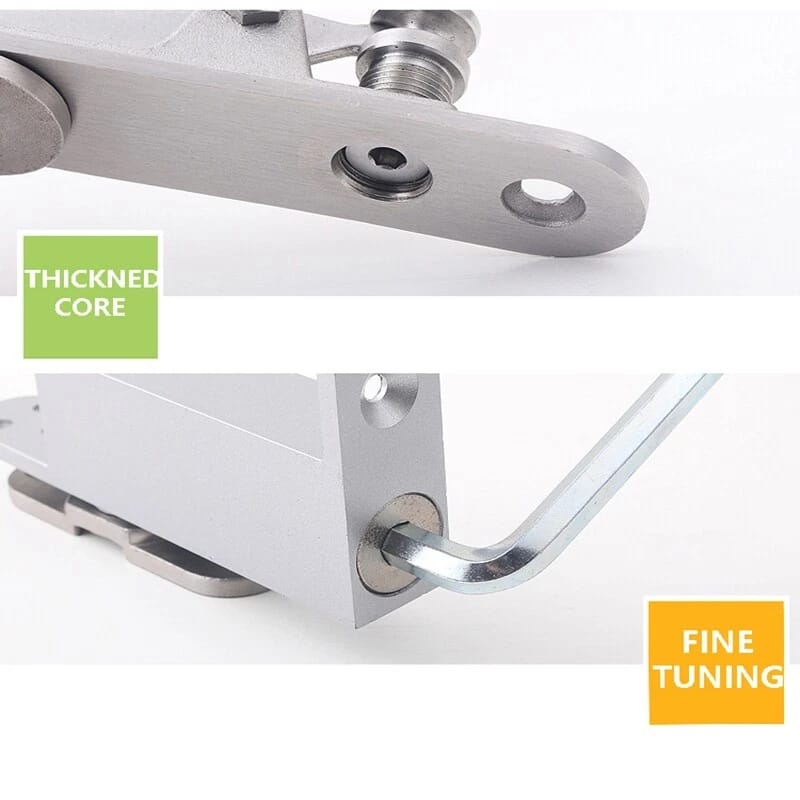

A pre-tensioning member allows you to set the initial tension on the spring. This determines how firmly the door closes. This can be adjusted to suit the door’s weight and the desired closing speed.

Many models feature a stepwise adjustment mechanism. This allows the pre-tension to be set in precise increments.

Some pivot hinges can be configured to self-close in one direction only. They may allow free walk in the opposite direction with no closing force. This is achieved through a specially designed groove in the pre-tensioning member. This allows the spring end to travel freely in one direction.

Advanced pivot hinges may include additional functionality.

Open Position Dwell is a feature in some hinges. They incorporate a mechanism that holds the door open at a pre-determined angle such as 90°. A gentle push toward closing releases the dwell, allowing the spring to close the door.

Integrated Stop is a built-in stop member. This prevents the door from rotating beyond its intended maximum opening angle. Hinge Lock is available in some models. They feature an integrated lock to secure the door in the open position when required.

Key Advantages of Self-Closing Pivot Hinges

The pivot design eliminates visible side hinges. This creates a clean, minimalist look that complements contemporary architecture. When fully concealed models are used, the hinge is completely invisible. This allows the beauty of the door material to take center stage.

Because pivot doors swing from a point set in from the edge, they can be positioned to open into a room without encroaching as far into the space as a standard hinged door. This is particularly valuable in tight floor plans.

Quality pivot hinges are engineered to support substantial weight. Some systems support doors up to 150 kg or 330 lbs. Others are designed for doors up to 75 kg or 165 lbs. This makes them suitable for heavy glass doors, solid timber doors, and oversized entrance statements.

Precision bearings and robust construction ensure that even heavy doors open and close smoothly and quietly. Some systems incorporate speed regulation for even greater control.

High-quality pivot hinges are tested for longevity. Some are certified for 200,000 cycles and are maintenance-free.

Premium Materials and Construction

The hinge components are manufactured from corrosion-resistant materials such as stainless steel, aluminium, and high-strength alloys. This ensures long-lasting performance in both interior and exterior environments.

Some pivot hinges feature spring housings constructed from sound-isolating materials. This dampens any noise generated by the spring mechanism during operation, ensuring silent closing.

Pivot hinges are available in a range of finishes to complement any design scheme. Polished Stainless Steel offers a bright, contemporary finish. Satin Stainless Steel offers a low-luster, easy-maintenance finish.

Polished Brass offers a warm, traditional appearance. Matte Black offers a bold, modern statement. Bronze offers rich, heritage appeal.

Types of Pivot Hinges

Standard Pivot Hinges are visible hinges that mount to the top and bottom of the door and frame. They offer the functionality of a pivot system with a clean, industrial aesthetic.

Concealed Pivot Hinges are compact pivot hinges that can be fitted inside the door itself. They remain completely invisible when installed. They mount directly to the finished floor and solid ceiling surface without requiring built-in fixtures.

Glass Door Pivot Hinges are specialized systems designed specifically for glass doors. They accommodate glass thicknesses from 8mm to 19.5mm and provide secure clamping without drilling.

Installation Overview

You will need appropriate fixing bolts and plugs for your floor and ceiling construction, a spirit level, a measuring tape, a drill with masonry or wood bits, and Allen keys or wrenches.

Step one is to prepare the opening. Ensure the floor and ceiling are solid and capable of supporting the door weight. The mounting surfaces must be level and plumb.

Step two is to mark positions. Determine the pivot point location based on door dimensions and desired swing. Mark fixing positions accurately.

Step three is to install bottom and top pivots. Secure the bottom pivot to the floor and the top pivot to the ceiling or overhead structure using appropriate bolts. The minimal anchoring system allows for easy installation on various surfaces.

Step four is to prepare the door. For concealed hinges, machine the door to accept the hinge mechanism. For surface-mount pivots, attach the door components as per manufacturer instructions.

Step five is to hang the door. Carefully position the door onto the bottom pivot and secure the top pivot connection. Some systems allow the door to be set onto the bottom pivot and then have removable top pins for easy installation.

Step six is to adjust and set tension. Most pivot hinges offer user-accessible adjustment mechanisms for height adjustment, depth adjustment, and spring pre-tension.

Step seven is to test operation. Open and close the door several times. Check for smooth movement, correct self-closing action, and proper alignment.

Frequently Asked Questions

What is the difference between a pivot hinge and a standard butt hinge?

A pivot hinge mounts at the top and bottom of the door, with the pivot point set in from the edge. This allows the door to rotate around a central axis. A standard butt hinge mounts on the side of the door and frame, with the pivot point at the edge. Pivot hinges offer a cleaner look, can support heavier doors, and allow for different swing geometries.

Can a self-closing pivot hinge be used on an exterior door?

Yes, provided the hinge is rated for exterior use. Look for stainless steel construction and weather-resistant finishes. Some systems are suitable for both indoor and sheltered outdoor areas.

How do I adjust the closing speed?

Closing speed is controlled by adjusting the pre-tension on the internal torsion spring. This is typically done via a pre-tensioning member accessible on the hinge body. It often requires a hex key or screwdriver. Some advanced systems may offer additional speed regulation.

Can I disable the self-closing function if I change my mind?

Many high-quality pivot hinges offer the ability to disable the self-closing function. This is usually achieved by adjusting the pre-tensioning member to a neutral position. In this position, the spring end travels freely without building tension.

How much weight can these hinges support?

Load capacity varies by model. Some systems support up to 150 kg. Others support up to 75 kg. Always check the manufacturer’s specifications for your specific door weight.

Will these hinges work with a door that needs to open both ways?

Yes, many pivot hinges are bidirectional and can be configured to allow 180° or even 360° swing operation. The self-closing function can often be set to operate in one direction only, with free swing in the opposite direction.

Do I need special tools for installation?

Basic installation can be performed with standard tools. However, for concealed hinges requiring routing into the door, woodworking tools may be necessary. Always follow the manufacturer’s installation instructions.

Are these hinges suitable for fire doors?

This depends on the specific hinge and its fire-rating certification. If you require hinges for a fire door, you must select models that are specifically tested and approved for use on fire-rated assemblies.

Applications Throughout Residential and Commercial Spaces

Self-closing pivot hinges are versatile components suitable for numerous settings.

In residential settings, they are used for main entrance doors, interior room dividers, pantry and utility room doors, closet and wardrobe doors, and patio and garden doors.

In commercial settings, they are used for office entrance doors, conference room doors, retail store entrances, restaurant kitchen doors, and hotel room doors.

In institutional settings, they are used for healthcare facility doors, educational institution doors, government building entrances, and accessibility-compliant installations.

In specialty applications, they are used for heavy glass doors in showrooms, soundproof studio doors, high-security access points, and oversized architectural statements.

The Professional Choice for Automatic Door Control

Our self closing pivot door hinges combine elegant design with robust engineering. Whether you require the clean lines of a fully concealed hinge or the industrial aesthetic of a visible pivot, these systems deliver reliable, adjustable self-closing action that enhances both form and function.

Choose the model that matches your door weight, desired finish, and installation requirements. With durable construction, smooth operation, and adjustable tension, you will enjoy years of trouble-free service.
