5 inch parliament hinges

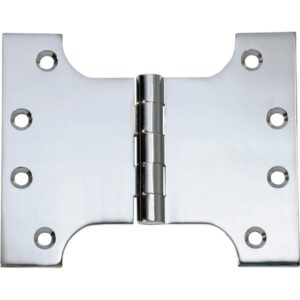

 5 Inch Parliament Hinges

When standard butt hinges will not provide the clearance your door needs, our 5 inch parliament hinges offer the professional solution. These specialized projection hinges feature an extended knuckle that projects the door away from the frame. This allows it to clear deep architraves, skirting boards, window boards, and even external obstructions.

The 5 inch designation refers to the fully open width of the hinge. The leaf height is 4 inches or 102mm and the projection is 3 inches. This 3-inch projection provides the necessary clearance for most architectural features, allowing doors to open fully without obstruction.

What Are Parliament Hinges?

Parliament hinges are a specialized type of butt hinge with an elongated knuckle that moves the door away from the frame. Unlike standard hinges where the pivot point sits close to the frame, parliament hinges relocate this pivot point forward. This creates the necessary clearance for doors to swing past obstructions.

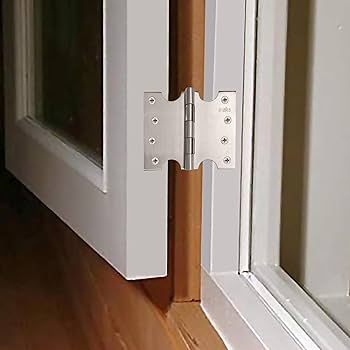

When fitted, the extended knuckle pushes the door away from the frame. The 3-inch projection provided by these 5-inch hinges allows the door to fold back flat against the wall.

This makes them indispensable for French doors and double doors, allowing both doors to open fully without interference. They are ideal for bifold doors, enabling complete folding action.

They work perfectly for under-stair cupboards, maximizing access to confined spaces. They clear deep decorative moldings on doors with thick architraves. For external doors, they bypass downpipes and other exterior obstructions.

Premium Material Options

Our solid brass parliament hinges feature a solid brass base with high-quality plating in multiple finishes.

Polished Nickel is bright, reflective, and extremely versatile. It is suitable for both modern and traditional settings. Polished Chrome has an exceedingly high-sheen finish. It is well-suited to contemporary designs with a cool, clean look.

Polished Brass offers a warm, traditional appearance ideal for period properties. Polished Bronze provides rich, warm tones for heritage and classic interiors. Pewter has a distinctive aged appearance with a high-quality plated finish.

For maximum durability and corrosion resistance, choose our stainless steel parliament hinges. Options include Polished Stainless Steel for a bright, contemporary finish. Satin Stainless Steel offers a low-luster, easy-maintenance finish. Black Stainless Steel features a durable oven-baked finish with subtle sheen.

The stainless steel base material helps protect against rusting and oxidization. These hinges are perfect for external applications and high-humidity environments.

Ball Bearing Technology

All our 5-inch parliament hinges feature precision ball bearings in the knuckle. This advanced design provides extra strength as ball bearings distribute load evenly for heavy-duty applications. It provides smooth action with effortless, quiet operation that will last for many years.

It reduces wear by minimizing friction between moving parts. It extends lifespan, ensuring reliable performance for decades.

Understanding Hinge Dimensions

The overall size is 102mm by 127mm. This represents leaf height by fully open width. The leaf height is 102mm or 4 inches. This is the vertical size of the hinge leaf.

The fully open width is 127mm or 5 inches. This is the total width when the hinge is fully open. The projection is 76mm or 3 inches. This is how far the door stands away from the frame. The thickness is 3mm.

Key Features at a Glance

Product Type is Parliament Hinge, also known as Projection Hinge. Size Designation is 5 inch or 127mm fully open width. Leaf Height is 102mm or 4 inches.

Projection is 76mm or 3 inches. Thickness is 3mm. Knuckle Design is Ball Bearing.

Material Options include Solid Brass with plating and Grade 304 Stainless Steel. Finish Options include Polished Nickel, Polished Chrome, Polished Brass, Polished Bronze, Pewter, Polished Stainless Steel, Satin Stainless Steel, and Black.

Pack Quantity is sold in pairs of 2 hinges. Included Hardware includes matching SS wood screws.

Load Capacity and Hinge Spacing

For optimal performance and safety, use 2 hinges per door leaf for standard doors. For heavier doors, a pair and a half of 3 hinges can be fitted to provide extra strength.

Proper hinge spacing is essential for correct door operation. Standard practice spaces hinges to provide maximum resistance to warping. Where overhead door closers are used, additional lateral forces are applied to the top hinge. Modified spacing may be required.

Installation Guide

Step one is to mark hinge positions. At the determined spacing, position the hinge leaf on the door so that the edge of the leaf by the knuckle is flush with the edge of the door. Mark around the leaf.

Step two is to cut mortices. Mortice out the door to the depth of the hinge leaf thickness of 3mm. The mortice should be smooth and any shavings removed. If intumescent pads are being fitted behind the hinge leaf, increase the mortice depth accordingly.

Step three is to attach hinges to door. Position the leaf into the mortice, mark the fixing holes, and pilot drill to suit the fixing screws. Secure the hinge leaf to the door using the screws provided and repeat for other hinges.

Step four is to position door in frame. Offer the door up to the door frame. Pack under the door leaf to achieve the required clearance. Once in position, open the top hinge leaf flat against the frame and mark around it as with the door. Repeat at each hinge position.

Step five is to attach to frame. Mortice out the frame to the depth of the hinge leaf thickness. Position the leaf into the mortice, pilot drill the fixing holes, and secure with screws provided. Repeat for remaining hinges.

Step six is to test operation. Check the door opens fully to 180 degrees and clears all obstructions. The hinge should operate smoothly with no binding.

Frequently Asked Questions

What does 5 inch refer to on these hinges?

The 5 inch designation refers to the fully open width of the hinge at 127mm. The leaf height is 4 inches at 102mm and the projection is 3 inches at 76mm. This is the standard sizing nomenclature for parliament hinges.

How much projection will these hinges provide?

These 5-inch parliament hinges provide 3 inches or 76mm of projection from the frame. This allows doors to clear deep architraves and other obstructions.

What is the difference between standard butt hinges and parliament hinges?

Standard butt hinges keep the door close to the frame, limiting opening to about 90 to 110 degrees. Parliament hinges feature an extended knuckle that projects the door away from the frame. This allows up to 180-degree opening and clearance of architraves, skirting, and other obstructions.

Can these hinges be used on external doors?

Yes, depending on the material. Stainless steel hinges offer excellent corrosion resistance for external use. For plated brass hinges, additional protection may be needed in harsh coastal environments. Always check the manufacturer’s recommendations for external applications.

Do these hinges come with screws?

Yes, all our 5-inch parliament hinges are supplied as pairs with matching stainless steel wood screws included for immediate installation.

What does pair and a half mean?

A pair and a half means three hinges. This configuration is recommended for heavier doors where two hinges might be insufficient. It provides extra strength and distributes weight more evenly.

Are these hinges guaranteed?

Many of our From The Anvil hinges come with a 5-year warranty, while others carry statutory guarantees. Check individual product specifications for specific warranty information.

What is the thickness of these hinges?

These hinges have a thickness of 3mm, providing robust support while maintaining a clean appearance.

The Professional Choice for Full-Open Doors

Our 5-inch parliament hinges combine traditional functionality with modern manufacturing precision. Whether you need to maximize space, create elegant French doors, or simply clear bulky architraves, these hinges deliver reliable, smooth operation.

Choose from our extensive range of finishes and materials to match your project perfectly. With options ranging from classic polished brass to contemporary black stainless steel, and all featuring precision ball bearings for lasting performance, you will find the ideal hinge for your application.
