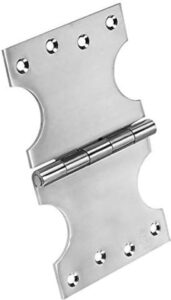

4 Inch Parliament Hinge.

Achieve Full Door Opening with 4 Inch Parliament Hinges

If you need a door to open completely flat against the wall or to clear thick architraves, skirting boards, or pipework, standard butt hinges will not suffice. Our 4 inch parliament hinges are the professional solution.

These specialized hinges feature an extended knuckle that projects the door away from the frame. This allows for a full 180-degree opening and provides the clearance required to bypass obstructions.

Whether you are installing French doors, bifold doors, or space-saving internal doors, these heavy-duty hinges deliver smooth operation and lasting durability. The 4-inch size is the most common and versatile choice for standard domestic doors. It offers the perfect balance of strength and projection.

What Are Parliament Hinges?

Parliament hinges are a type of butt hinge with an elongated knuckle. This extended knuckle pushes the door away from the frame. It creates a gap that allows the door to swing clear of architraves, window boards, deep skirting, or even external downpipes.

Unlike standard hinges where the pivot point is close to the frame, parliament hinges relocate the pivot point forward. The screw holes are positioned toward the edge of the hinge flap. When fitted, the knuckle projects beyond the edge of the door.

The size of this projection determines the opening angle you can achieve. With the right projection, your door can open a full 180 degrees, folding back flat against the wall.

Key applications include French doors and double doors, allowing both doors to open fully without interfering with each other. They are ideal for bifold doors, enabling doors to fold back completely.

They work perfectly for under-stair cupboards, maximizing access to confined spaces. They clear thick architraves and deep decorative moldings. For external doors, they bypass downpipes or other exterior obstructions. For room dividers, they create wide, unobstructed openings between spaces.

Premium Construction and Materials

Our polished solid brass parliament hinges offer timeless elegance and natural corrosion resistance. Brass develops a beautiful patina over time and is ideal for traditional and heritage settings. These hinges are perfect for period properties and classic interiors where authenticity matters.

For superior strength and modern durability, choose our stainless steel parliament hinges. Grade 304 stainless steel provides excellent corrosion resistance for internal or external use. It has a high strength-to-weight ratio. It offers long-lasting performance in humid environments. It is suitable for coastal areas when properly maintained.

Polished Brass is a warm, reflective, traditional finish best suited for period homes and classic interiors. Polished Chrome is a bright, mirror-like, contemporary finish best suited for modern designs and cool color schemes.

Satin Chrome has a muted sheen and is low maintenance. It is best suited for high-traffic areas and modern homes. Matt Black provides bold contrast with a subtle sheen. It is best suited for traditional settings and stained or painted timber.

Zinc Plated is economical and functional. It is best suited for utility areas and light-duty applications.

Many of our 4 inch parliament hinges feature precision ball bearings in the knuckle. This advanced design provides extra strength as ball bearings distribute load evenly. It provides smooth action with effortless, quiet operation even after years of use.

It reduces wear by minimizing friction between moving parts. It extends lifespan, ensuring reliable performance for decades.

Understanding Hinge Measurements

Parliament hinges are typically described by three dimensions.

The leaf height is 4 inches or 100mm. This is the vertical size of the hinge. The 4-inch size is standard for most domestic doors. It is suitable for door thicknesses up to approximately 35 to 40mm.

The inside clearance or projection measurement varies by model. It determines how far the door stands away from the frame. A 75mm projection is suitable for moderate architraves. A 100mm projection is for deeper obstructions.

A 2 inch projection of approximately 50mm is for standard applications. A 4 inch projection of approximately 100mm is for maximum clearance.

The fully open width is specified on some hinges. For example, 100mm by 75mm by 125mm means leaf height is 100mm or 4 inches, inside clearance is 75mm projection, and fully open width is 125mm.

Load Capacity and Duty Ratings

Different models offer varying weight capacities to suit your door type.

Standard Light Duty models have a maximum door weight of 24kg. They are suitable for low-use lightweight doors and cupboards. Heavy Duty Ball Bearing models have a maximum door weight of 80kg. They are suitable for solid core doors, French doors, and high-use applications.

For optimal performance and safety, use 2 hinges per door leaf for standard doors. Use 3 hinges, a pair and a half, for heavy doors over 60kg. For extra-heavy doors over 80kg, consult manufacturer guidelines.

Installation Guide

You will need a chisel, hammer, screwdriver, pencil, tape measure, and spirit level.

Step one is to mark hinge positions. Measure and mark the positions for your hinges on the door frame. Standard placement is 150mm from the top and bottom of the door. The third hinge if used is centered between them.

Step two is to mark the door. Hold the hinge against the door edge and mark its outline. The hinge knuckle should project beyond the door face to achieve the desired clearance.

Step three is to chisel the recesses. Carefully chisel out the marked areas to the depth of the hinge leaf thickness. Test-fit the hinge to ensure it sits flush.

Step four is to attach hinges to door. Screw the hinges to the door using the provided matching wood screws. Ensure screws are driven straight and fully seated.

Step five is to hang the door. Position the door in the frame and mark the hinge positions on the frame. Chisel these recesses and screw the hinges to the frame.

Step six is to check operation. Test the door opening. It should swing freely and clear all obstructions. Adjust if necessary.

For glazed or solid doors, inset the hinge leaf an additional 15 percent each side. This reduces projection by approximately 30 percent but provides better support. When fitting to rebated doors, ensure the hinge projection is sufficient to clear the rebate when opening.

Frequently Asked Questions

What’s the difference between standard butt hinges and parliament hinges?

Standard butt hinges keep the door close to the frame, limiting opening to about 90 to 110 degrees. Parliament hinges feature an extended knuckle that projects the door away from the frame. This allows up to 180-degree opening and clearance of architraves, skirting boards, and other obstructions.

Can I use parliament hinges on external doors?

Yes, many of our parliament hinges are suitable for external use. Choose stainless steel or corrosion-resistant finishes for exterior applications. Ball-bearing versions provide additional strength for heavier external doors.

How much clearance will I get with 4 inch parliament hinges?

The clearance depends on the specific hinge model. Standard 4-inch parliament hinges typically provide 75 to 100mm of projection from the frame. Some heavy-duty models offer up to 4 inches of projection.

Do these hinges come with screws?

Yes, all our parliament hinges are supplied as pairs with matching wood screws included. The screws are color-matched to the hinge finish for a professional appearance.

Will these hinges work for bifold doors?

Absolutely. Parliament hinges are an excellent choice for bifold doors, allowing each door leaf to fold back completely. For best results, use heavy-duty ball-bearing versions and consider using three hinges per door for added stability.

Can I paint these hinges?

While you can paint some metal hinges, we recommend choosing a pre-finished hinge that matches your décor. Our polished, plated, and coated finishes are designed to be durable and long-lasting. Painting may affect operation and void warranties.

What does pair and a half mean?

A pair and a half means three hinges. This configuration is recommended for heavier doors where two hinges might be insufficient. The extra hinge provides additional support and distributes weight more evenly.

The Professional Choice for Full-Open Doors

Our 4 inch parliament hinges combine traditional functionality with modern manufacturing precision. Whether you need to maximize space in a small room, create elegant French doors, or simply clear bulky architraves, these hinges deliver reliable, smooth operation.

Choose from our extensive range of finishes and materials to match your project perfectly. With options ranging from classic polished brass to contemporary matt black, and from light-duty to heavy-duty ball-bearing constructions, you will find the ideal hinge for your application.

Backed by manufacturer guarantees and verified customer reviews, these hinges represent the perfect investment in your home’s functionality and aesthetics.
