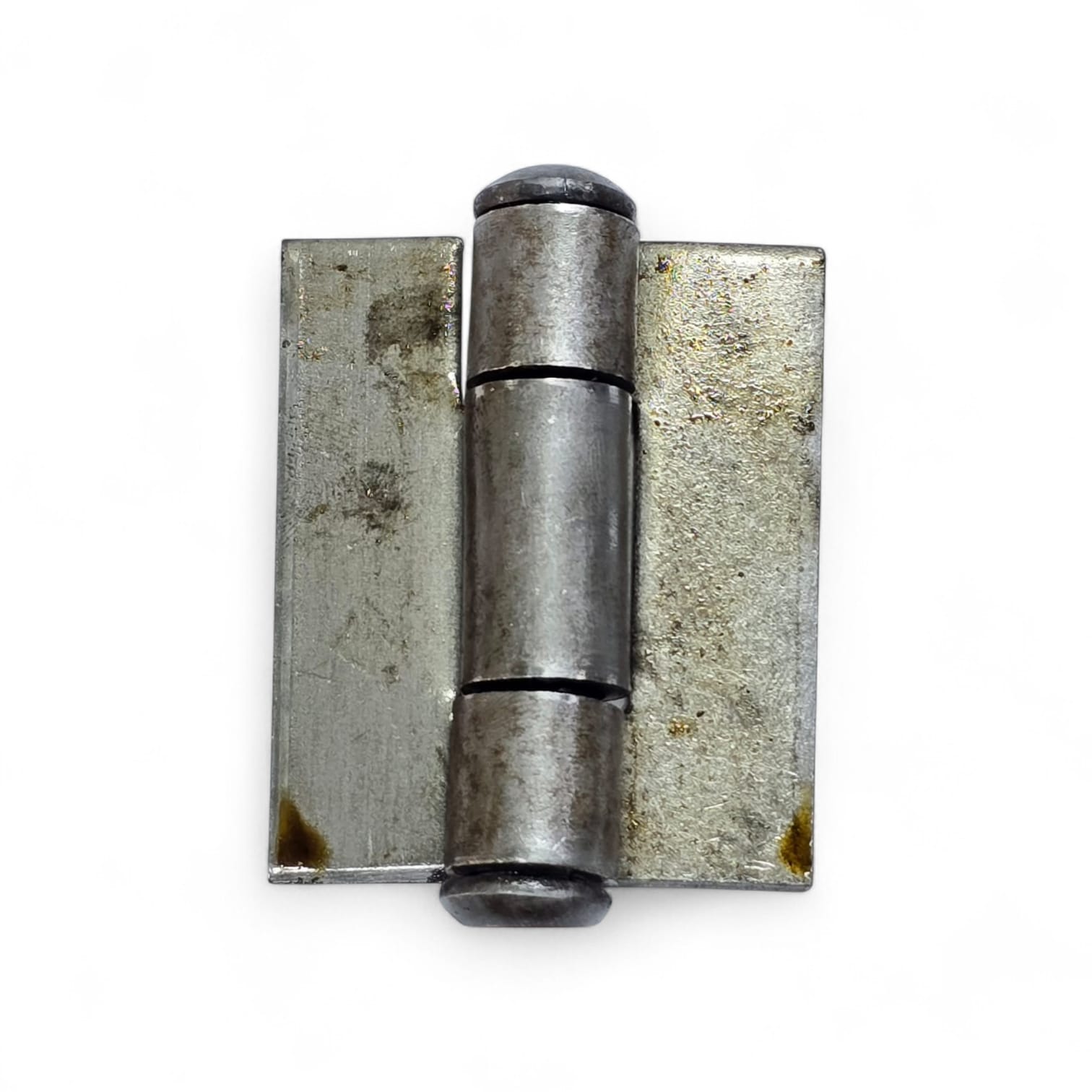

 10mm x 64mm x 3mm Steel Hinges

When you need a compact, reliable hinge for lightweight applications, our 10mm by 64mm by 3mm steel hinges deliver precision performance in a small package. These butt hinges are ideal for projects where space is limited but quality cannot be compromised. They are perfect for jewelry boxes, small cabinets, model-making, and craft projects.

The dimensions of 10mm open width, 64mm length, and 3mm thickness describe a hinge that is both slender and robust enough for its intended light-duty applications. Crafted from durable steel with a protective zinc-plated finish, these hinges offer excellent corrosion resistance and smooth operation.

Understanding the Dimensions

The open width is 10mm. This is the width of the hinge when fully open across both leaves. The length is 64mm. This is the vertical length of each hinge leaf. The thickness is 3mm. This is the material thickness of each leaf.

The knuckle diameter is approximately 3 to 4mm based on 3mm thickness. The pin diameter is approximately 2 to 3mm with a removable pin design.

These dimensions make the hinge suitable for small boxes, cabinet doors, and other applications where a full-size hinge would be visually overwhelming or physically impractical.

Key Features

These hinges feature a removable pin or loose pin construction. This allows you to separate the hinge leaves for easy installation. You can remove doors quickly for maintenance or refinishing. You can adjust door alignment by bending the pin if necessary. You can replace individual leaves if damaged.

Manufactured from steel with a protective zinc plating, these hinges offer good corrosion resistance for indoor applications. They have a smooth, consistent finish without sharp edges. They provide durable performance under light to moderate use. They offer cost-effective reliability for everyday projects.

These hinges are produced with tight tolerances to ensure consistent dimensions across multiple hinges. They provide smooth pivoting action without binding. They have clean, burr-free edges safe for handling. They ensure proper screw hole alignment for easy installation.

Typical Applications

These 10x64x3mm steel hinges are versatile components suitable for numerous light-duty applications.

For cabinetwork, they work on small cabinet doors, cupboard doors, and display case doors. For boxes and cases, they are ideal for jewelry boxes, keepsake boxes, wooden chests, and toolboxes.

For craft and hobby, they suit model-making, dollhouse construction, miniature furniture, and scale models. For furniture, they work on small drawers, folding tables, and drop-leaf mechanisms.

For industrial uses, they are suitable for inspection hatches and light-duty electrical enclosures and access panels.

Installation Guide

You will need a small screwdriver matching the screw head type, a pencil for marking, an awl or small drill for pilot holes, and clamps for holding the hinge during marking.

Step one is to mark hinge positions. Hold the hinge in position on your door or lid and mark the screw hole locations with a sharp pencil. Ensure the hinge is properly aligned and square.

Step two is to drill pilot holes. Using a drill bit slightly smaller than your screws, drill pilot holes at the marked positions. This prevents wood splitting and ensures easier screw insertion.

Step three is to attach hinges to door. Separate the hinge leaves by removing the pin. Position one leaf on the door, align with pilot holes, and secure with screws.

Step four is to position door in frame. Hold the door in its closed position and mark the hinge positions on the frame. Attach the second leaf to the frame using the same process.

Step five is to join hinges. Insert the removable pin to join the two leaves. Check door operation and adjust if necessary.

Step six is to test operation. Open and close the door several times to ensure smooth operation without binding.

For pro tips, countersink holes slightly if using flat-head screws for a flush finish. Use thread-locking compound on screws for applications subject to vibration. Apply light lubricant to the pin for even smoother operation. Check alignment before final tightening of all screws.

Material Specifications

The steel base material is mild steel or carbon steel. It has good strength-to-weight ratio and is machinable and weldable. The surface is clean, uniform, and ready for plating.

The zinc plating is an electroplated zinc coating. Thickness is typically 5 to 8 microns. Benefits include corrosion resistance, attractive appearance, and cost-effectiveness. It may meet ASTM B633 or equivalent specifications.

Maximum load is light-duty. Specific rating varies by application. Corrosion resistance is good for indoor use. Temperature range is -20°C to +120°C.

Finish hardness is moderate and protective but not wear-resistant. Pin retention is friction fit and removable.

Available Quantities

These hinges are typically available in various pack sizes.

A single pair is for small projects or replacements. Multi-packs of 10 pairs are for larger projects or workshops. Bulk quantities are available for manufacturing and commercial applications.

Frequently Asked Questions

What does 10mm x 64mm x 3mm mean?

These dimensions describe the hinge. 10mm is the width of the hinge when both leaves are fully open across both leaves. 64mm is the length of each hinge leaf from top to bottom. 3mm is the thickness of each leaf or material gauge.

Are these hinges suitable for heavy doors?

No. These are light-duty hinges designed for small cabinets, boxes, and lightweight applications. For heavier doors, you would need larger hinges with greater thickness and load capacity.

Do these hinges come with screws?

Screws are typically not included with these hinges. The required screw size depends on your specific application and material. We recommend using #4 or #6 wood screws of appropriate length for your project.

Can these hinges be used on metal frames?

Yes, but you will need to use screws appropriate for metal such as self-tapping screws or machine screws with nuts. The steel construction of the hinges is compatible with metal framing.

What is the pin made of?

The pin is typically made of steel wire, often zinc-plated for corrosion resistance. Some premium versions may use stainless steel pins.

Can I remove the pin?

Yes, these hinges feature a removable pin design. This allows you to separate the leaves for easy installation or door removal. The pin is held in place by friction and can be tapped out with a pin punch if necessary.

How many hinges do I need per door?

For small boxes and lightweight doors, two hinges or one pair are usually sufficient. For longer doors over 600mm, consider using three hinges spaced evenly.

Are these hinges rust-resistant?

The zinc-plated finish provides good corrosion resistance for indoor use. However, they are not suitable for outdoor applications or continuous exposure to moisture without additional protection.

Can I paint these hinges?

Yes, you can paint these hinges. Lightly sand the surface to improve paint adhesion, apply a metal primer, then paint with your chosen color. Be careful not to get paint in the knuckle, as this can affect operation.

What is the maximum door thickness for these hinges?

These hinges are suitable for doors up to approximately 15 to 20mm thick. The limiting factor is the hinge size relative to the door. For thicker doors, larger hinges would be more proportionate and provide better support.

The Perfect Choice for Small-Scale Projects

Our 10mm by 64mm by 3mm steel hinges prove that good things come in small packages. Whether you are crafting a heirloom jewelry box, repairing a favorite cabinet, or building scale models, these precision hinges deliver the smooth, reliable performance your project deserves.

With durable zinc-plated steel construction, removable pins for easy installation, and consistent manufacturing quality, they are the trusted choice of craftspeople, hobbyists, and DIY enthusiasts alike.
